Product description

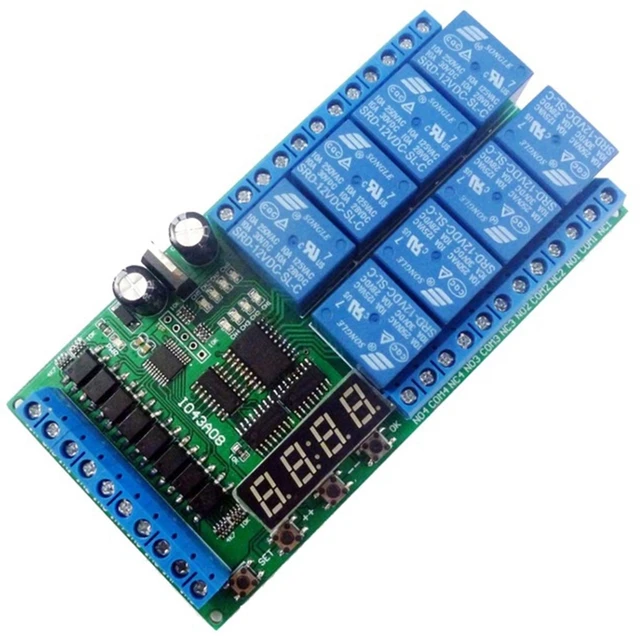

[4000825254339]AAY-Dc12V 8 Channels Multifunction Timer Delay Relay Board Time Switch Timing Loop Interlock Self-Locking Momentary Bistable
Longest delay time : 00h:00m:01s - 99h:59m:59sworking status : start work after powering. Displays the remaining time of 1 channel, the parameters can be displayed the "channel select" to set;Set status: short press the "SET" key to enter "channel select" Status. Short press "OK" button to exit the setting;power-saving status: in this Status,digital tubes donot display,and other features work correctly. Long press "OK" button after 5 seconds to enter power-saving status, press again "OK" button for 5 seconds or re-power to exit power-saving status.Factory settings: press and hold "++" and "--" two button for 3 seconds, to restore factory settings, and the digital tube will turn open . After re-power , will run default parameters.8 channels relay,each channel independently triggered independent delay, do not interfere with each other.6 kinds of functional modules, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).Input optical isolation.Power anti-reverse diode.High Q value SMD electrolytic capacitors.Parameter power-down save1 Operating voltage: DC 12V2 Operating Current : Standby current (power-saving status) 7MA, Standby current 48MA ,1 relay open 75MA, 2 relays open 102MA, 3 relays open 129MA, 4 relays open 160MA, 4 relays open 160MA,5 relays open 182MA, 6 relays open 207MA, 7 relays open 253MA, 8 relays open 258MA3 Size: 120x62x20 4 Weight : 128g5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6ATypical applications:1 DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, toy car andother DC 12V equipment 2 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC AC equipment User Instructions:Short press: press key time is less than 2 seconds;Long press: press key time more than 2 seconds;Status: working status , set status, power-saving status.colour:blackMaterial:metalsize:120x62x20mmPackage Contents:1 * 8 channels relayOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
