Dc12V 8 Channels Multifunction Timer Delay Relay Board Time Switch Timing Loop Interlock Self-Locki
US $19.76
Original Price : US $28.23 (30%)
Special Offer Dc12V 8 Channels Multifunction Timer Delay Relay Board Time Switch Timing Loop Interlock Self-Locki with FREE Worldwide Shipping!
4.37
Related Products :
MK10 Hotend Kit For 3D Printer | M7 Nozzle And Throat With PTFE Tube And Aluminum Heater Block | Improved Version Fit With M3 An
46mm Vented Lens Hood - Black
2Pcs Camera Lens Step Up Filter Black Metal Adapter Ring - 72Mm-77Mm & 62Mm - 77Mm
Dual Charger Dock Station With 2Pcs 4800Mah Rechargeable Battery Led Charging Light For Xbox 360 Controller Us Plug
Product description
[4000725968307]body {
font-size: 75%;
color: #000;
font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体";
line-height: 1.3;
}
dl {
margin: 0px;
width: 480px;
float: left;
}
dt {
width: 100px;
height: 15px;
float: left;
}
dd {
width: 240px;
height: 15px;
float: left;
}
dl dt {
margin: 0px;
line-height: 22px;
color: #474747;
font-size: 14px;
font-family: tahoma;
}
#product-desc {
width: 100%;
height: 209px;
}
#description {
width: 100%;
height: 50%;
}
#details {
width: 100%;
height: 50%;
}
.ui-box-title {
height: 30px;
font-size: 15px;
font-family: tahoma;
font-weight: bold;
background-color: #ddd;
text-anchor: inherit;
padding-top: 8px;
margin: 0px;
}
.ui-box-body {
margin: 0px;
}
#tbspecifics {
border-right: 1px solid black;
border-bottom: 1px solid black;
}
#tbspecifics tr {
height: 30px;
}
#tbspecifics td {
width: 100px;
border-left: 1px solid black;
border-top: 1px solid black;
}

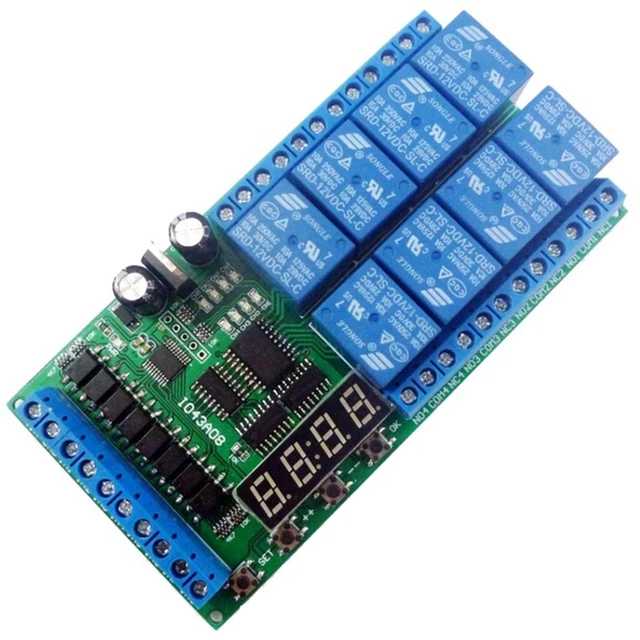

Dc12V 8 Channels Multifunction Timer Delay Relay Board Time Switch Timing Loop Interlock Self-Locking Momentary Bistable
Longest delay time : 00h:00m:01s - 99h:59m:59sworking status : start work after powering. Displays the remaining time of 1 channel, the parameters can be displayed the "channel select" to set;Set status: short press the "SET" key to enter "channel select" Status. Short press "OK" button to exit the setting;power-saving status: in this Status,digital tubes donot display,and other features work correctly. Long press "OK" button after 5 seconds to enter power-saving status, press again "OK" button for 5 seconds or re-power to exit power-saving status.Factory settings: press and hold "++" and "--" two button for 3 seconds, to restore factory settings, and the digital tube will turn open . After re-power , will run default parameters.8 channels relay,each channel independently triggered independent delay, do not interfere with each other.6 kinds of functional modules, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).Input optical isolation.Power anti-reverse diode.High Q value SMD electrolytic capacitors.Parameter power-down save1 Operating voltage: DC 12V2 Operating Current : Standby current (power-saving status) 7MA, Standby current 48MA ,1 relay open 75MA, 2 relays open 102MA, 3 relays open 129MA, 4 relays open 160MA, 4 relays open 160MA,5 relays open 182MA, 6 relays open 207MA, 7 relays open 253MA, 8 relays open 258MA3 Size: 120x62x20 4 Weight : 128g5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6ATypical applications:1 DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, toy car andother DC 12V equipment 2 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC AC equipment User Instructions:Short press: press key time is less than 2 seconds;Long press: press key time more than 2 seconds;Status: working status , set status, power-saving status.colour:blackMaterial:metalsize:120x62x20mmPackage Contents:1 * 8 channels relayOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
