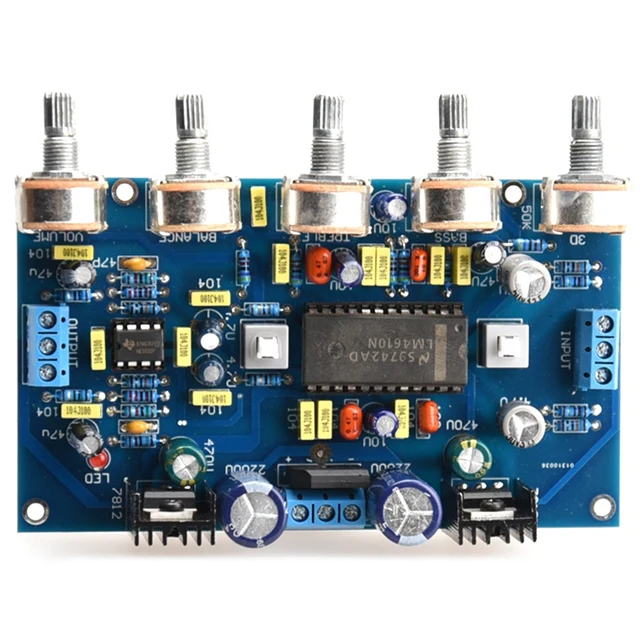

DIY Power Amplifier Tone Board Voltage Amplifier LM4610 Tone +5532 Amplification Front - Stage Fini
US $18.58
Original Price : US $25.80 (28%)
Best Offer DIY Power Amplifier Tone Board Voltage Amplifier LM4610 Tone +5532 Amplification Front - Stage Fini with Free Worldwide Shipping!
4.52
Related Products :
3D Printer UM2 for Ultimaker 2 Dual Extrusion Kit 2 Dual Heads Extruder for Ultimaker 2 0.4Mm Nozzle
ISD1820 Sound Voice Recording Playback module with mini - sound audio speakers
Protective Safety Glasses Work Anti Virus Eye Anti-Fog Anti Sand windproof Anti Dust Saliva Transparent Goggles Eye Protection
Micro-Sd Tf Card Slot Socket Board Replacement For Nintendo Switch Game Console Card Reader Slot Socket
Product description
[4000766257705]body {
font-size: 75%;
color: #000;
font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体";
line-height: 1.3;
}
dl {
margin: 0px;
width: 480px;
float: left;
}
dt {
width: 100px;
height: 15px;
float: left;
}
dd {
width: 240px;
height: 15px;
float: left;
}
dl dt {
margin: 0px;
line-height: 22px;
color: #474747;
font-size: 14px;
font-family: tahoma;
}
#product-desc {
width: 100%;
height: 209px;
}
#description {
width: 100%;
height: 50%;
}
#details {
width: 100%;
height: 50%;
}
.ui-box-title {
height: 30px;
font-size: 15px;
font-family: tahoma;
font-weight: bold;
background-color: #ddd;
text-anchor: inherit;
padding-top: 8px;
margin: 0px;
}
.ui-box-body {
margin: 0px;
}
#tbspecifics {
border-right: 1px solid black;
border-bottom: 1px solid black;
}
#tbspecifics tr {
height: 30px;
}
#tbspecifics td {
width: 100px;
border-left: 1px solid black;
border-top: 1px solid black;
}
Voltage: double ac15v-18v note: low voltage will have ac sound, high and 15V will do.The method of reducing noise -- connect the input ground with the shortest (as far as possible shielded) thick line, and then introduce the connection to the housing or heat dissipation or large area of conductor;Circuit board size: 117X68MM(excluding potentiometer)Potentiometer function: 3D, bass, high pitch, balance, volumeDistance between potentiometers: 25MMTwo switching functions: 3D switch on the left and equal loudness switch on the right (LM4610 is wide praise audio enthusiasts LM1036 and upgrading of products, the chip quality smooth and natural, simple peripheral circuit, the function is perfect, in addition to the excellent performance of double track dc voltage to adjust the volume, high and low, balance, and other functions, but also has such as the loudness and 3 d surround sound processing functions, and may, according to the user's interests, the three-dimensional (3 d) stereo sound field to the perfect state.1.The main parameters of LM4610 are as follows:Ending zoom: 3 timesLow input impedance to 30 k Ω, low output impedance of 20 Ohm;Ending with 75dB;The balance adjustment range is 1 ~ 20dB.The length adjustment (at 40Hz) is + / - 15dB, and the length adjustment (16kHz) is + - 15dB.The total harmonic distortion is only 0.0003.Ending/ending ratio up to 80dB;Ending frequency response width of 250kHz;The maximum input and output voltage of the terminal signal is 1.5v.Ending balance error less than 1.5db;The common-mode rejection ratio of ending power source is 60dB.colour:blueMaterial:plasticsize:117X68mmPackage Contents:1*Amplifier boardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
